All You Need to Know About Ceramic Fiber Fireproof Insulation

Delve into the world of ceramic fiber fireproof insulation, a remarkable material used in demanding high-temperature settings such as kilns and furnaces. In this guide, we’ll explore the production process, fire resistance capabilities, and the diverse applications of ceramic fiber blankets.

Main Ingredients

The production of ceramic fiber blankets begins with the selection of high-quality raw materials, typically

  • 45% alumina Al2O3
  • 50% silica SiO2
  • 2% Titanium oxide TiO2
  • 1% ferric oxide Fe2O3
  • And other trace compounds like sodium oxide Na2O
  • and magnesium oxide MgO

Production process

Ceramic fiber blankets are crafted from high-quality raw materials, including alumina, silica, titanium oxide, ferric oxide, sodium oxide, and magnesium oxide. Through a melting and spinning process, these materials are transformed into continuous strands of ceramic fibers. The fibers are then stitched together using a needle-punching machine, resulting in a robust and cohesive structure. The final product is heat-treated to fuse the fibers, providing exceptional fire resistance.

Fire Resistance

Ceramic fiber insulation’s primary advantage lies in its ability to withstand extremely high temperatures. During a test with a propane torch and thermal imaging camera, the material remained intact even at temperatures as high as 150 degrees Celsius (300 degrees Fahrenheit). It effectively prevents heat loss, improving energy efficiency and saving resources. However, at temperatures exceeding 1200 degrees Celsius (2200 degrees Fahrenheit), the insulation may begin to deteriorate.

Advantages

  • Ceramic fiber insulation is dense but lightweight. It maintains its shape and structure and is dimensionally stable.
  • It has low thermal drift or loss of insulation value over time.
  • It can be easily cut with a utility knife into any desired shape.
  • It is very flexible and can be easily wrapped around pipes, ducts and other complex shapes.

Uses

  • Ceramic fiber is typically used in high-temperature environments in the aerospace, military and petrochemical industries.

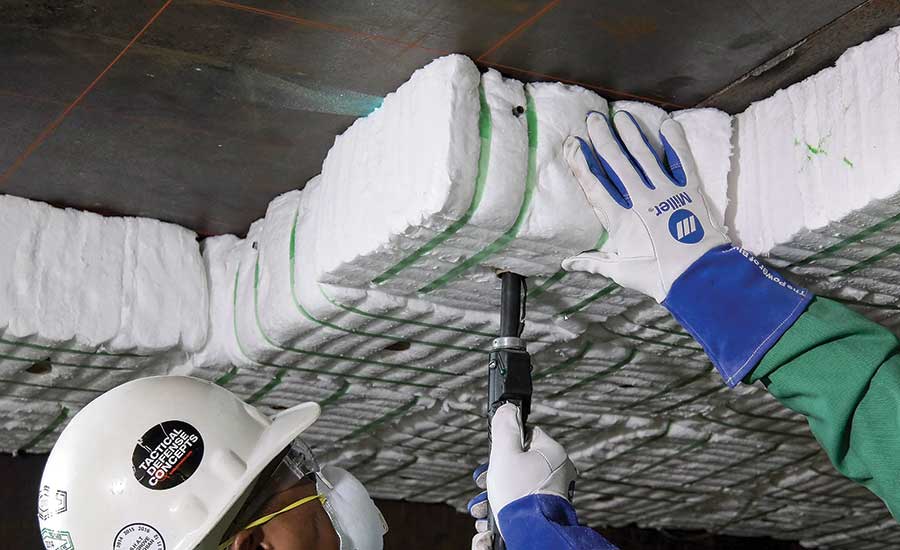

  • Blankets are used for furnace linings, pipe wrap insulation and even pizza ovens.
  • Foil-faced blankets used for welding, soldering and HVAC ducts
  • Loose fill insulation is used in expansion joints and chimney insulation
  • Boards are used for insulation backing and fire blocks
  • Textiles used for flame retardant fabric, electrical insulation and ropes
  • Ceramic fibers can also be compressed down to make ceramic fiber paper for furnace door seals, stoves, kilns, and forges as a gasket material.

Disadvantages

Despite its fire resistance, ceramic insulation has some drawbacks. With a relatively low R-value of 2.5 per inch, it is unsuitable for home insulation. Additionally, handling ceramic fiber requires protective gear due to potential skin, eye, and respiratory irritation. The Environmental Protection Agency (EPA) classifies ceramic fibers as a possible carcinogen, highlighting the importance of precautionary measures.

Eco-Friendly Alternatives

Concerns regarding health and environmental impacts have led to the development of eco-friendly and biosoluble ceramic fiber insulation. These alternatives are pollution-free, harmless, and degradable in human body fluids, addressing the potential health risks associated with traditional ceramic fiber.

https://www.ceceramicfiber.com/Products/BioSolubleFiberBlank.html

Conclusion

Ceramic fiber fireproof insulation is a remarkable solution for high-temperature environments, offering unparalleled fire resistance and versatility. While it excels in many aspects, it requires careful handling and consideration of potential health and environmental impacts. As technology advances, eco-friendly alternatives may offer safer and more sustainable options. When used responsibly and in the right settings, ceramic fiber insulation can be a valuable asset in various industries, ensuring safety and efficiency in extreme heat conditions.
